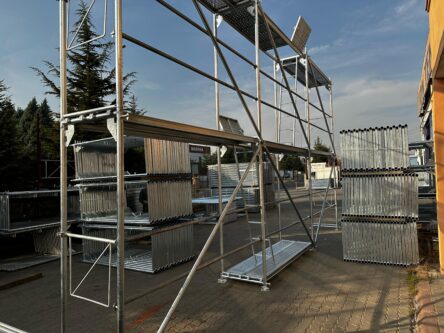

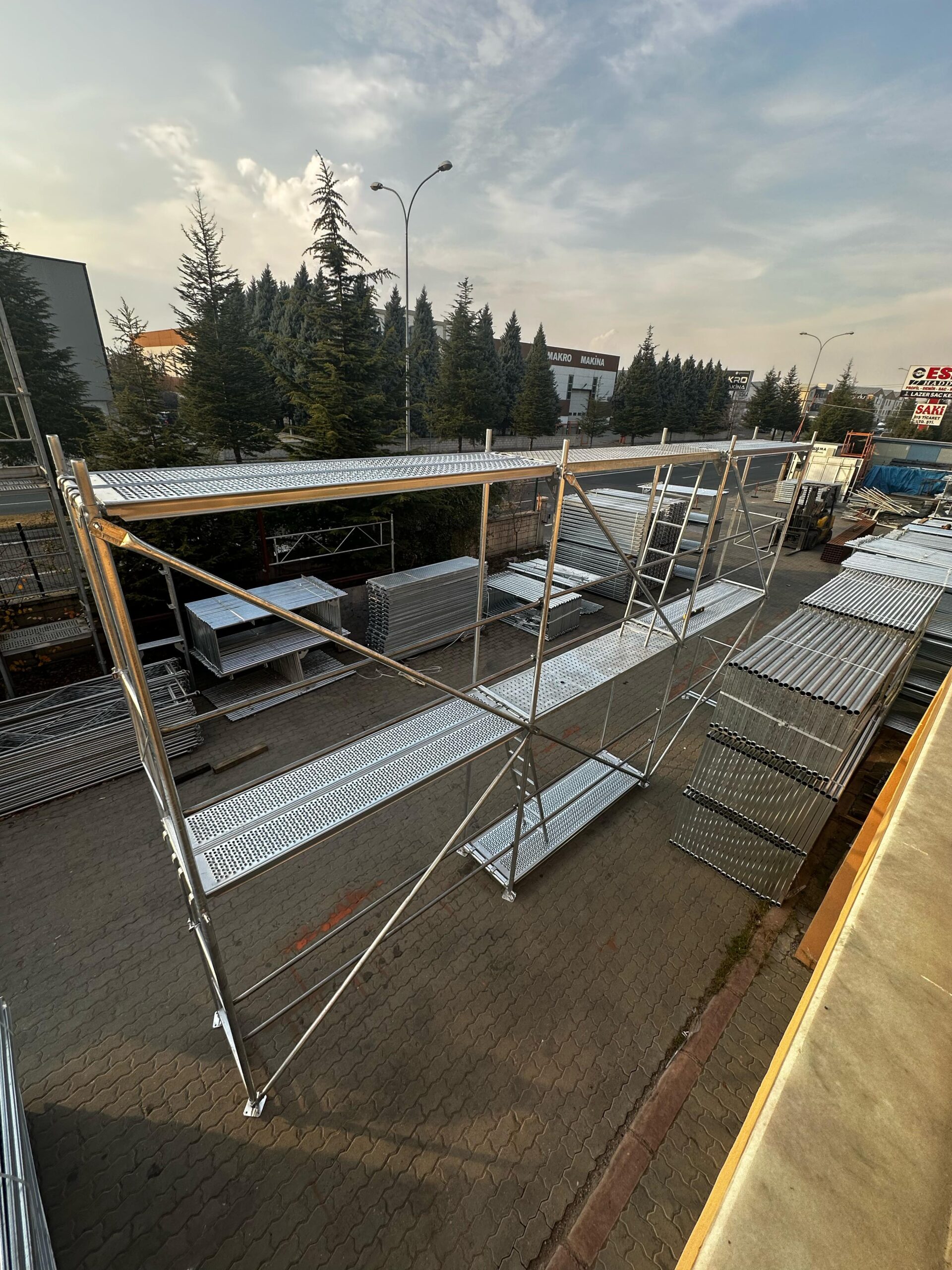

Ladder Type H Frame Scaffolding System

This facade type scaffolding system is most usefully. Main components are H frame, digonal components and horizontal components.

Auxulary components are nippel, pin and plank. One module consist 2 H frame, 2 diagonal component, 2 horizontal component, 4 nippel, 1 plank and covers 4m2 area.

H frame with itself ladder made pipe ø42 x 2,5 mm borudan, diagonal and horizontal components made pipe ø27 x 2,5 mm.

H frame connecting by nippel and pin, so this system is very safety.

We can make a produce different size and thickness of the iron.
